Cenotaph Relocation. Grade II* Listed, Conservation Area, Manchester City Centre




Date: 2012 - Present

Client: Manchester City Council – Laing O’Rourke

Architect: Stephen Levrant Heritage Architecture

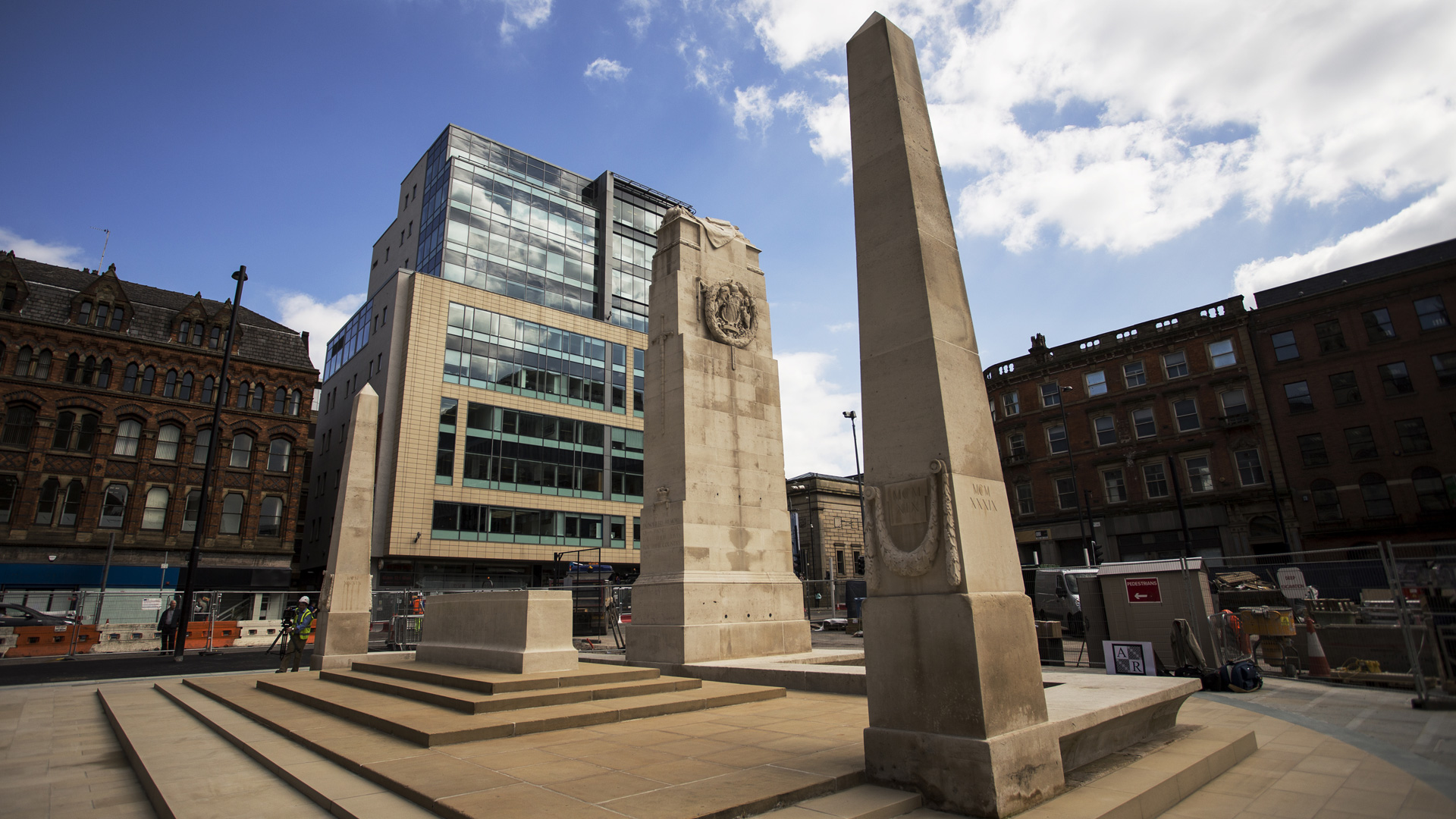

The War Memorial Grade II* listed Cenotaph Assmbly was built in 1924 by Sir Edwin Lutyens. The rectangular Cenotaph is located on a plinth which runs out to each side with the returns bearing obelisks and it is surmonted by a statue representing the dormient soldier. The composition is completed by the podium and the War Stone. The Cenotaph Assembly forms a group with the adjacent Memorial Cross within the St. Peter’s square Conservation Area.




Project Proposal

Dismantlement, relocation and reconstruction of the Cenotaph Assembly to a new location in St.Peter’s Square, at the rear of Manchester Town Hall. Design of new setting for the Cenotaph as a key part of the St.Peter’s Square redesign.




Scope of Professional Services

Heritage Architecture Ltd was commissioned as Lead architects from concept (RIBA 2013 Stage 2) to completion of construction (RIBA Stage 7), as well as acting as planning consultants for our City council clients. Key tasks included the following:

Listed Building Consent and Full Planning Application

Including production of the heritage Statement (comprehensive: Historic Appraisal and Significance Assessment of the monument); Relocation options appraisal; D&A Statement, Submission of documentation for Discharge of PA/LBC Conditions. Listed Building and Planning Consent was granted in 2012.

Conservation Works

Conservation architect from concept (RIBA 2013 Stage 2) to completion of construction (RIBA Stage 7), with  responsibility for the detailed specification of the repair and conservation treatment of the grade-II* Portland stone monument, including devising the dismantling, relocation and reconstruction methodology.

New Setting Works

Lead designer from concept (RIBA 2013 Stage 2) to completion of construction (RIBA Stage 7) .  Currently at completion of Stage 4 (November  2013).  Creating a new publiuc space which will form the new setting of the grade-II* Cenotaph adajcent to the grade-I listed Manchester Town Hall.
